PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 80 - 1DSAXX
แบรนด์
SKF
รายละเอียด :
เฟื่องโซ่สองชั้น Pitch = 1" สำหรับใส่โซ่เดี่ยว
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 80 - 1DSA13
Model description
No.Teeth = 13

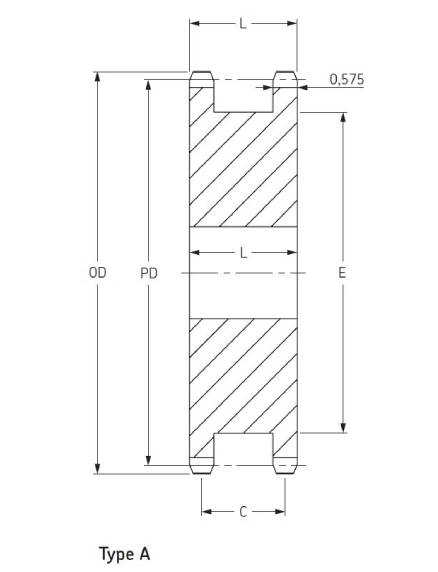

DIMENSIONS : Outside diameter = 4.66 inch , Type = A , Bore min =1 inch , Bore max = 2 inch ,L =2 3/16 in. , C =1 5/8 in. , E = 3 1/64 in.
Price
Model
PHS 80 - 1DSA14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 4.98 inch , Type = A , Bore min = 1 inch , Bore max = 2 1/4 inch ,L = 2 3/16 in. , C = 1 5/8 in. , E = 3 11/32 in.
Price
Model
PHS 80 - 1DSA15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 5.30 inch , Type = A , Bore min = 1 inch , Bore max = 2 3/8 inch ,L = 2 3/16 in. , C = 1 5/8 in. , E = 3 13/16 in.
Price
Model
PHS 80 - 1DSA16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 5.63 inch , Type = A , Bore min = 1 inch , Bore max = 2 11/16 inch ,L = 2 3/16 in. , C = 1 5/8 in. , E =4 in.
Price
Model
PHS 80 - 1DSA17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 5.95 inch , Type = A , Bore min = 1 inch , Bore max = 2 13/16 inch ,L = 2 3/16 in. , C =1 5/8 in. , E = 4 5/16 in.
Price
Model
PHS 80 - 1DSA18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 6.27 inch , Type = A , Bore min = 1 inch , Bore max = 3 1/8 inch ,L = 2 3/16 in. , C = 1 5/8 in. , E = 4 41/64 in.
Price
Model
PHS 80 - 1DSA19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 6.59 inch , Type = A , Bore min = 1 inch , Bore max = 3 1/4 inch ,L = 2 3/16 in. , C = 1 5/8 in. , E = 4 61/64 in.
Price
Model
PHS 80 - 1DSA20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 6.91 inch , Type = A , Bore min = 1 inch , Bore max = 3 1/2 inch ,L =2 3/16 in. , C =1 5/8 in. , E = 5 9/32 in.
Price
Model
PHS 80 - 1DSA21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 7.24 inch , Type = A , Bore min = 1 inch , Bore max = 3 3/4 inch ,L = 2 3/16 in. , C = 1 5/8 in. , E = 5 19/32 in.
Price
Model
PHS 80 - 1DSA22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 7.56 inch , Type = A , Bore min = 1 inch , Bore max = 3 7/8 inch ,L = 2 3/16 in. , C = 1 5/8 in. , E = 5 59/64 in.
Price
Model
PHS 80 - 1DSA23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 7.88 inch , Type = A , Bore min = 1 inch , Bore max = 3 7/8 inch ,L = 2 3/16 in. , C = 1 5/8 in. , E = 6 15/64 in.
Price
