PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 60 - 1DSTBXX
แบรนด์
SKF
รายละเอียด :
เฟื่องโซ่สองชั้น Pitch = 3/4" สำหรับใส่โซ่เดี่ยว ล็อดเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 60 - 1DSTB16
Model description
No.Teeth = 16 , Bushing Size = 1615

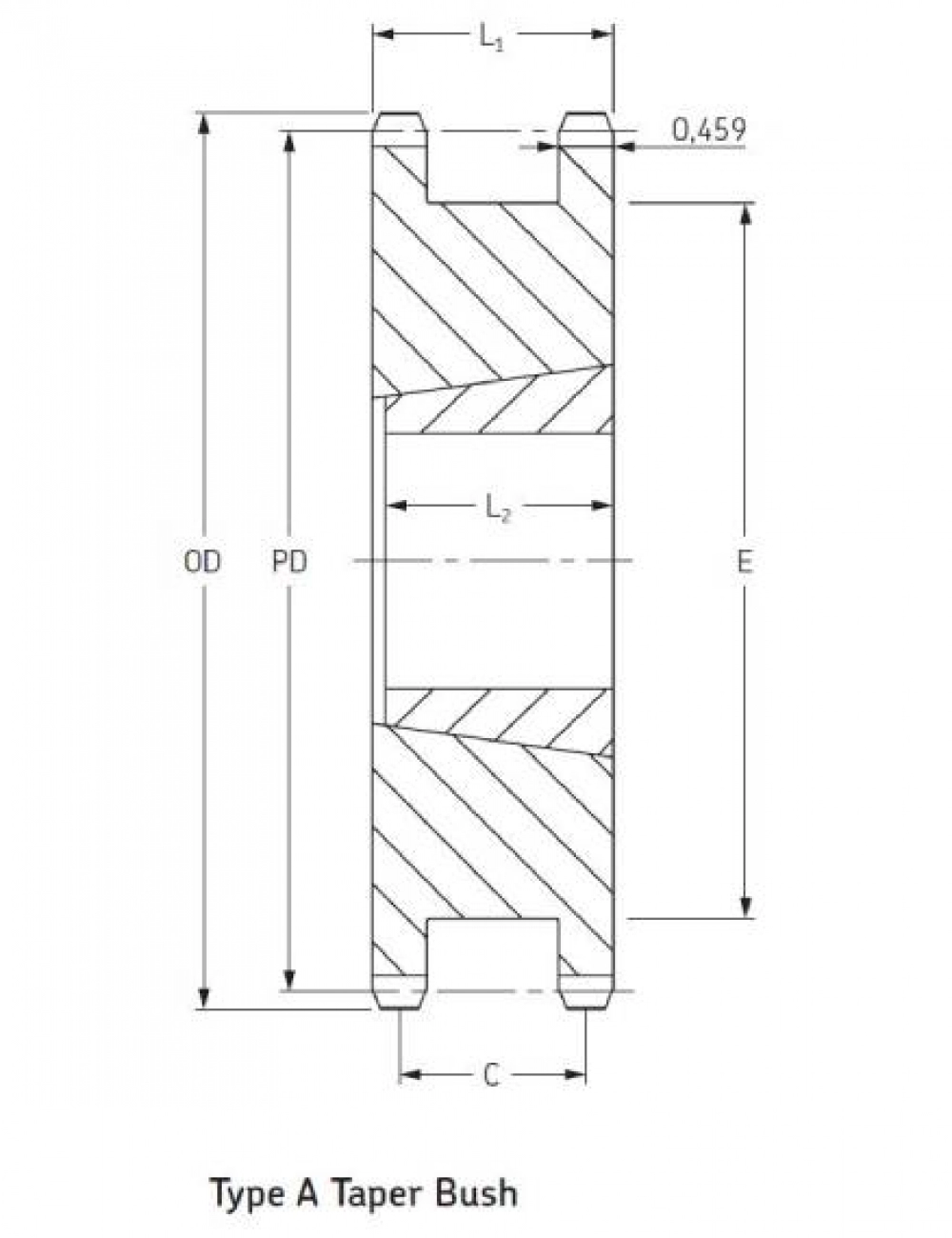

DIMENSIONS : Outside diameter = 4.22 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L1= 1 15/16 in. , C = 1 31/64 in. , E = 2 63/64 in.
Price
Model
PHS 60 - 1DSTB17
Model description
No.Teeth = 17 , Bushing Size = 1615
DIMENSIONS : Outside diameter = 4.46 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L1= 1 15/16 in. , C = 1 31/64 in. , E = 3 7/32 in.
Price
Model
PHS 60 - 1DSTB18
Model description
No.Teeth = 18 , Bushing Size = 2012
DIMENSIONS : Outside diameter = 4.70 inch , Type = A , Bore min = 1/2 inch , Bore max = 2 inch ,L1= 1 15/16 in. , C = 1 31/64 in. , E = 3 15/32 in.
Price
Model
PHS 60 - 1DSTB19
Model description
No.Teeth = 19 , Bushing Size = 2012
DIMENSIONS : Outside diameter = 4.95 inch , Type = A , Bore min = 1/2 inch , Bore max = 2 inch ,L1= 1 15/16 in. , C = 1 31/64 in. , E = 3 45/64 in.
Price
Model
PHS 60 - 1DSTB20
Model description
No.Teeth = 20 , Bushing Size = 2517
DIMENSIONS : Outside diameter = 5.19 inch , Type = A , Bore min = 1/2 inch , Bore max = 2 1/2 inch ,L1= 1 15/16 in. , C =1 31/64 in. , E = 3 61/64 in.
Price
Model
PHS 60 - 1DSTB21
Model description
No.Teeth = 21 , Bushing Size = 2517
DIMENSIONS : Outside diameter = 5.43 inch , Type = A , Bore min = 1/2 inch , Bore max = 2 1/2 inch ,L1=1 15/16 in. , C = 1 31/64 in. , E = 4 3/16 in.
Price
Model
PHS 60 - 1DSTB23
Model description
No.Teeth = 23 , Bushing Size = 2517
DIMENSIONS : Outside diameter = 5.91 inch , Type = A , Bore min = 1/2 inch , Bore max = 2 1/2 inch ,L1= 1 15/16 in. , C = 1 31/64 in. , E = 4 43/64 in.
Price
Model
PHS 60 - 1DSTB24
Model description
No.Teeth = 24 , Bushing Size = 2517
DIMENSIONS : Outside diameter = 6.15 inch , Type = A , Bore min = 1/2 inch , Bore max = 2 1/2 inch ,L1=1 15/16 in. , C = 1 31/64 in. , E = 4 29/32 in.
Price
