PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 60 - 1DSAXX
แบรนด์
SKF
รายละเอียด :
เฟื่องโซ่สองชั้น Pitch = 3/4" สำหรับใส่โซ่เดี่ยว
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 60 - 1DSA13
Model description
No.Teeth = 13

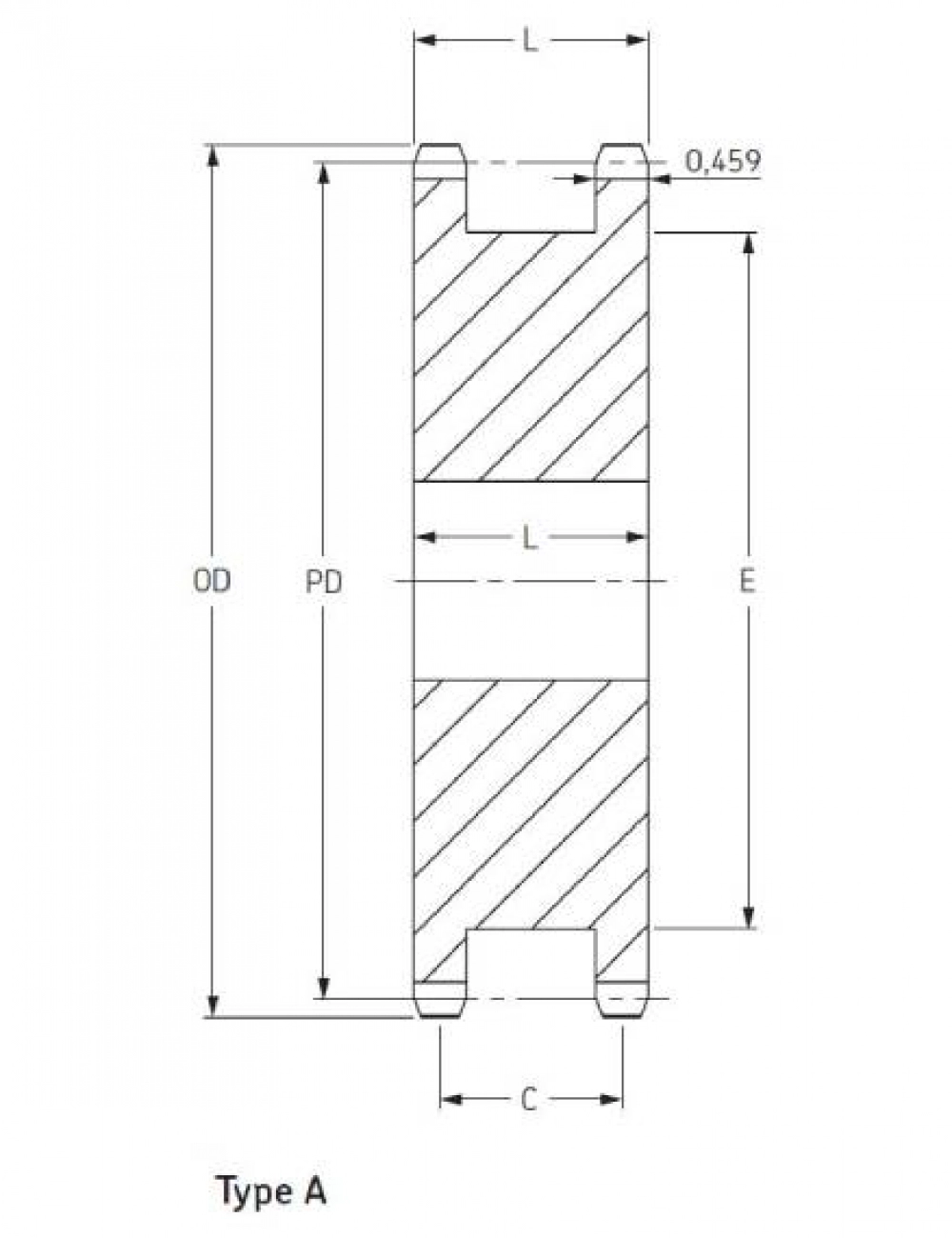

DIMENSIONS : Outside diameter = 3.49 inch , Type = A , Bore min = 3/4 inch , Bore max = 1 1/4 inch ,L = 1 15/16 in. , C = 1 31/64 in. , E = 2 11/32 in.
Price
Model
PHS 60 - 1DSA14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 3.74 inch , Type = A , Bore min = 3/4 inch , Bore max = 1 5/16 inch ,L = 1 15/16 in. , C = 1 31/64 in. , E = 2 9/16 in.
Price
Model
PHS 60 - 1DSA15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 3.98 inch , Type = A , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,L = 1 15/16 in. , C = 1 31/64 in. , E = 2 7/8 in.
Price
Model
PHS 60 - 1DSA16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 4.22 inch , Type = A , Bore min = 3/4 inch , Bore max = 1 11/16 inch ,L =1 15/16 in. , C = 1 31/64 in. , E = 3 1/4 in.
Price
Model
PHS 60 - 1DSA17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 4.46 inch , Type = A , Bore min = 3/4 inch , Bore max = 1 3/4 inch ,L = 1 15/16 in. , C = 1 31/64 in. , E = 3 1/4 in.
Price
Model
PHS 60 - 1DSA18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 4.70 inch , Type = A , Bore min = 3/4 inch , Bore max = 1 7/8 inch ,L = 1 15/16 in. , C = 1 31/64 in. , E =3 1/2 in.
Price
Model
PHS 60 - 1DSA19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 4.95 inch , Type = A , Bore min = 3/4 inch , Bore max = 2 1/6 inch ,L = 1 15/16 in. , C = 1 31/64 in. , E =3 45/64 in.
Price
Model
PHS 60 - 1DSA20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 5.19 inch , Type = A , Bore min = 3/4 inch , Bore max = 2 1/4 inch ,L = 1 15/16 in. , C = 1 31/64 in. , E = 3 61/64 in.
Price
Model
PHS 60 - 1DSA21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 5.43 inch , Type = A , Bore min = 3/4 inch , Bore max = 2 3/4 inch ,L = 1 15/16 in. , C = 1 31/64 in. , E =4 3/16 in.
Price
Model
PHS 60 - 1DSA22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 5.67 inch , Type = A , Bore min = 3/4 inch , Bore max = 2 3/4 inch ,L = 1 15/16 in. , C = 1 31/64 in. , E = 4 7/16 in.
Price
Model
PHS 60 - 1DSA23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 5.91 inch , Type = A , Bore min = 3/4 inch , Bore max = 2 3/4 inch ,L = 1 15/16 in. , C = 1 31/64 in. , E = 4 21/32 in.
Price
Model
PHS 60 - 1DSA24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 6.15 inch , Type = A , Bore min = 3/4 inch , Bore max = 2 3/4 inch ,L = 1 15/16 in. , C = 1 31/64 in. , E = 4 29/32 in.
Price
