PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 50 - 1DSTBXX
แบรนด์
SKF
รายละเอียด :
เฟื่องโซ่สองชั้น Pitch = 5/8" สำหรับใส่โซ่เดี่ยว ล็อดเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 50 - 1BDSTB16
Model description
No.Teeth = 16 , Bushing Size = 1215

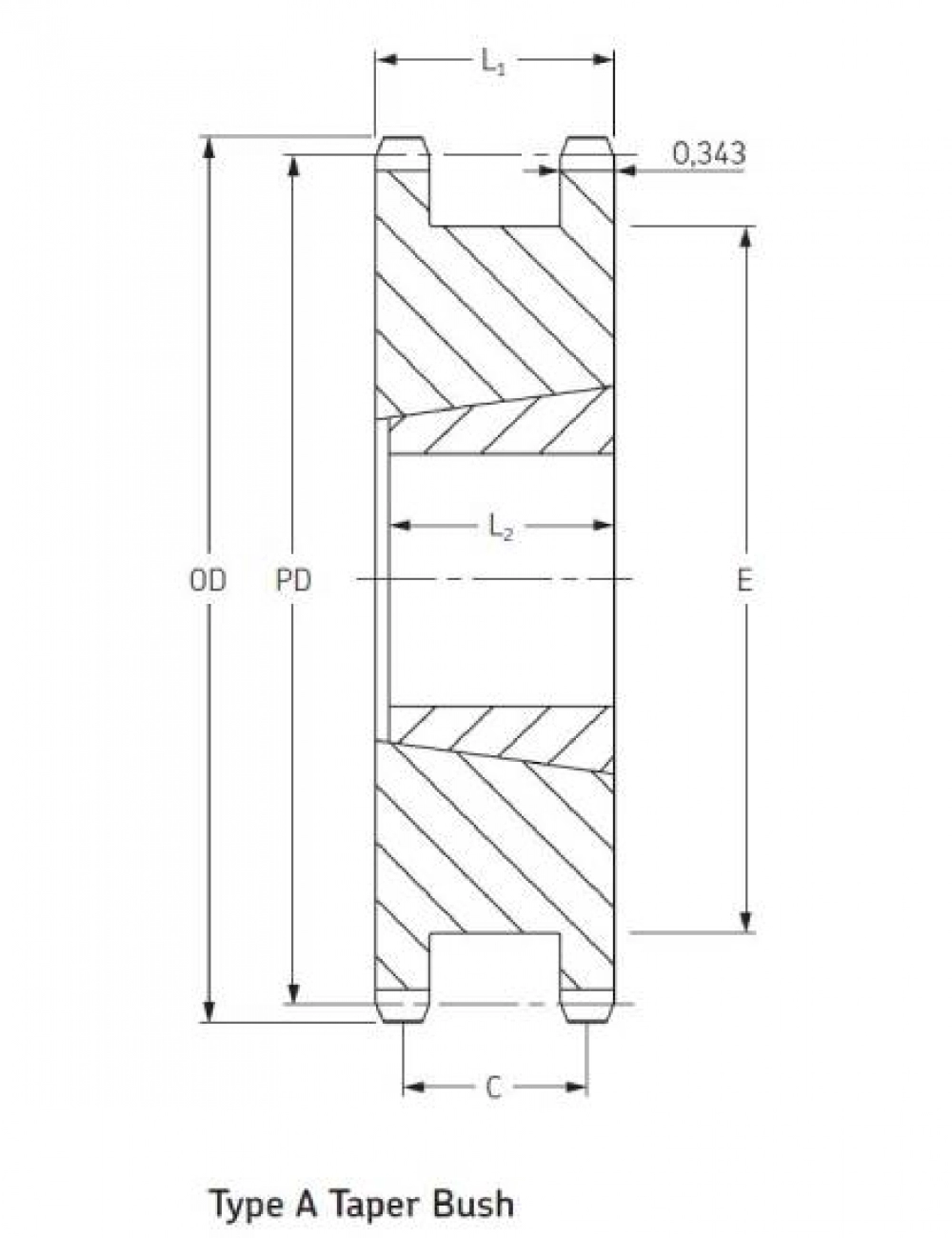

DIMENSIONS : Outside diameter = 3.52 inch , Type = A , Bore min =1/2 inch , Bore max = 1 5/8 inch ,L1= 1 21/32 in. , C = 1 5/16 in. , E = 2 31/64 in.
Price
Model
PHS 50 - 1BDSTB17
Model description
No.Teeth = 17 , Bushing Size = 1615
DIMENSIONS : Outside diameter = 3.72 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L1= 1 21/32 in. , C = 1 5/16 in. , E = 2 11/16 in.
Price
Model
PHS 50 - 1BDSTB18
Model description
No.Teeth = 18 , Bushing Size = 1615
DIMENSIONS : Outside diameter = 3.92 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L1= 1 21/32 in. , C = 1 5/16 in. , E = 2 57/64 in.
Price
Model
PHS 50 - 1BDSTB19
Model description
No.Teeth = 19 , Bushing Size = 1615
DIMENSIONS : Outside diameter = 4.12 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L1= 1 21/32 in. , C = 1 5/16 in. , E = 3 5/64 in.
Price
Model
PHS 50 - 1BDSTB20
Model description
No.Teeth = 20 , Bushing Size = 1615
DIMENSIONS : Outside diameter = 4.32 inch , Type = A , Bore min = 1/2 inch , Bore max = 1 5/8 inch ,L1= 1 21/32 in. , C = 1 5/6 in. , E =3 5/64 in.
Price
Model
PHS 50 - 1BDSTB21
Model description
No.Teeth = 21 , Bushing Size = 2012
DIMENSIONS : Outside diameter = 4.52 inch , Type = A , Bore min = 1/2 inch , Bore max = 2 inch ,L1= 1 21/32 in. , C = 1 5/16 in. , E =3 31/64 in.
Price
Model
PHS 50 - 1BDSTB23
Model description
No.Teeth = 23 , Bushing Size = 2012
DIMENSIONS : Outside diameter = 4.92 inch , Type = A , Bore min = 1/2 inch , Bore max = 2 inch ,L1= 1 21/32 in. , C = 1 5/16 in. , E = 3 57/64 in.
Price
Model
PHS 50 - 1BDSTB24
Model description
No.Teeth = 24 , Bushing Size = 2012
DIMENSIONS : Outside diameter = 5.12 inch , Type = A , Bore min = 1/2 inch , Bore max = 2 inch ,L1= 1 21/32 in. , C = 1 5/16 in. , E = 4 5/64 in.
Price
