PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 50 - 1DSAXX
แบรนด์
SKF
รายละเอียด :
เฟื่องโซ่สองชั้น Pitch = 5/8" สำหรับใส่โซ่เดี่ยว
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 50 - 1DSA15
Model description
No.Teeth = 15

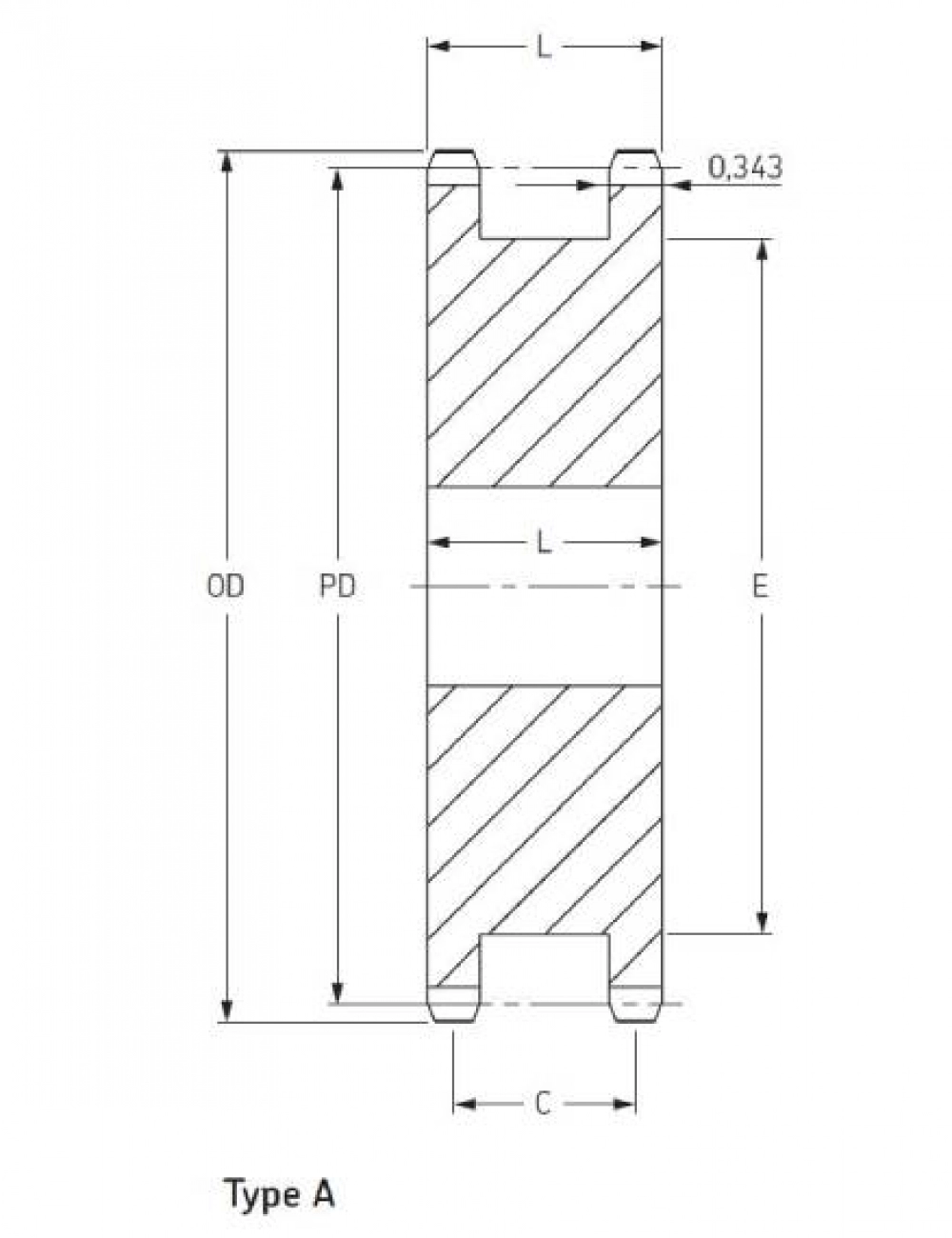

DIMENSIONS : Outside diameter = 3.32 inch , Type = A , Bore min = 5/8 inch , Bore max = 1 1/2 inch ,L = 1 21/32 in. , C = 1 3/16 in. , E = 2 3/8 in.
Price
Model
PHS 50 - 1DSA16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 3.52 inch , Type = A , Bore min = 5/8 inch , Bore max = 1 11/16 inch ,L = 1 21/32 in. , C = 1 5.16 in. , E =2 1/2 in.
Price
Model
PHS 50 - 1DSA17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 3.72 inch , Type = A , Bore min = 5/8 inch , Bore max = 1 3/4 inch ,L = 1 21/32 in. , C = 1 5/16 in. , E = 2 11/16 in.
Price
Model
PHS 50 - 1DSA18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 3.92 inch , Type = A , Bore min = 5/8 inch , Bore max = 1 7/8 inch ,L =1 21/32 in. , C = 1 5/16 in. , E = 2 57/64 in.
Price
Model
PHS 50 - 1DSA19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 4.12 inch , Type = A , Bore min = 5/8 inch , Bore max = 2 1/16 inch ,L = 1 21/32 in. , C = 1 5/16 in. , E = 3 5/64 in.
Price
Model
PHS 50 - 1DSA20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 4.32 inch , Type = A , Bore min = 5/8 inch , Bore max = 2 1/4 inch ,L = 1 21/32 in. , C = 1 5/16 in. , E = 3 9/32 in.
Price
Model
PHS 50 - 1DSA21
Model description
No.Teeth =21
DIMENSIONS : Outside diameter = 4.52 inch , Type = A , Bore min = 5/8 inch , Bore max = 2 1/4 inch ,L = 1 21/32 in. , C = 1 5/16 in. , E = 3 31/64 in.
Price
Model
PHS 50 - 1DSA22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 4.72 inch , Type = A , Bore min = 5/8 inch , Bore max = 2 1/16 inch ,L = 1 21/32 in. , C = 1 5/16 in. , E = 3 11/16 in.
Price
Model
PHS 50 - 1DSA23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 4.92 inch , Type = A , Bore min = 5/8 inch , Bore max = 2 5/8 inch ,L = 1 21/32 in. , C = 1 5/16 in. , E = 3 57/64 in.
Price
Model
PHS 50 - 1DSA24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 5.12 inch , Type = A , Bore min = 5/8 inch , Bore max = 2 3/4 inch ,L = 1 21/32 in. , C = 1 5/16 in. , E = 4 5/64 in.
Price
