PRODUCT
![]()
ชื่อรุ่น :
ANSI PHS 100 - 1DSAXX
แบรนด์
SKF
รายละเอียด :
เฟื่องโซ่สองชั้น Pitch = 1. 1/4" สำหรับใส่โซ่เดี่ยว
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 100 - 1DSA13
Model description
No.Teeth = 13

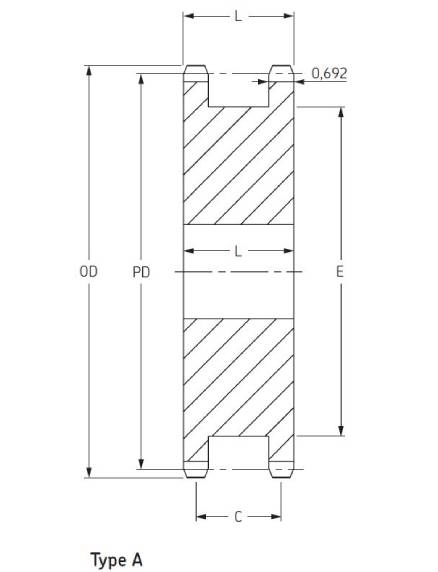

DIMENSIONS : Outside diameter = 5.82 inch , Type = A , Bore min = 1 inch , Bore max = 2 1/2 inch ,L = 2 11/16 in. , C =2 in. , E = 3 25/32in.
Price
Model
PHS 100 - 1DSA14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 6.23 inch , Type = A , Bore min = 1 1/4 inch , Bore max = 2 3/4 inch ,L = 2 11/16 in. , C = 2 in. , E = 4 3/16 in.
Price
Model
PHS 100 - 1DSA15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 6.63 inch , Type = A , Bore min = 1 1/4 inch , Bore max = 3 1/16 inch ,L =2 11/16 in. , C = 2 in. , E = 4 19/32 in.
Price
Model
PHS 100 - 1DSA16
Model description
No.Teeth =16
DIMENSIONS : Outside diameter = 7.03 inch , Type = A , Bore min = 1 1/4 inch , Bore max = 3 1/4 inch ,L = 2 11/16 in. , C = 2 in. , E = 5 in.
Price
Model
PHS 100 - 1DSA17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 7.44 inch , Type = A , Bore min = 1 /14 inch , Bore max = 3 5/8 inch ,L =2 11/16 in. , C = 2 in. , E = 5 13/32 in.
Price
Model
PHS 100 - 1DSA18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 7.84 inch , Type = A , Bore min = 1 1/4 inch , Bore max = 3/4 inch ,L = 2 11/16 in. , C = 2 in. , E = 5 51/64 in.
Price
Model
PHS 100 - 1DSA19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 8.24 inch , Type = A , Bore min = 1 1/4 inch , Bore max = 4 3/16 inch ,L = 2 11/16 in. , C =2 in. , E = 6 13/64 in.
Price
Model
PHS 100 - 1DSA20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 8.64 inch , Type = A , Bore min = 1 1/4 inch , Bore max = 4 3/16 inch ,L = 2 11/16 in. , C = 2 in. , E = 6 39/64 in.
Price
Model
PHS 100 - 1DSA21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 9.04 inch , Type = A , Bore min = 1 1/4 inch , Bore max = 5 1/4 inch ,L = 2 11/16 in. , C =2 in. , E = 7 in.
Price
