PRODUCT
![]()
ชื่อรุ่น :
PHS 60 - 2BXX
แบรนด์
SKF
รายละเอียด :

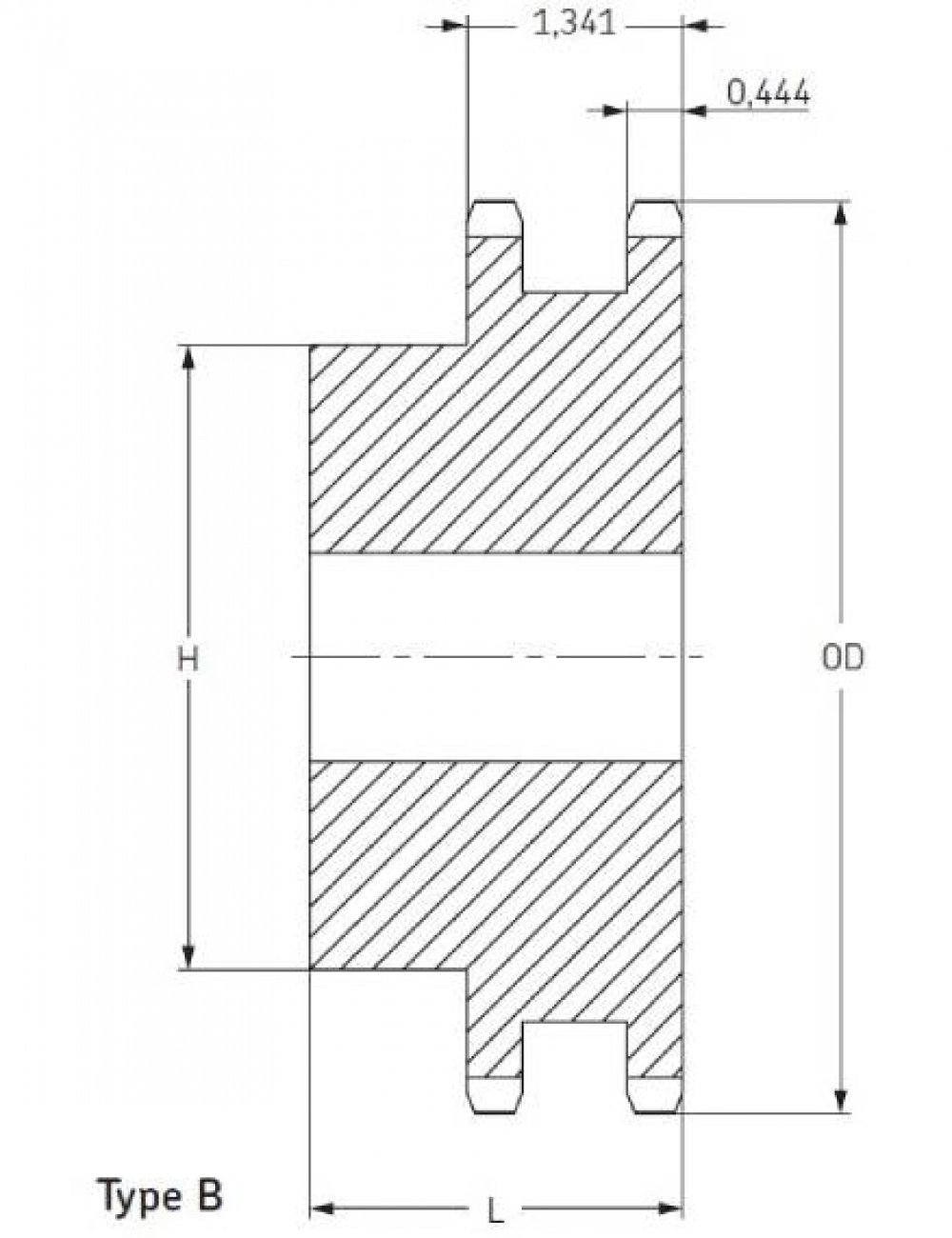

เฟื่องโซ่สองชั้น Pitch = 3/4"
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 60 - 2B11
Model description
No.Teeth = 11
DIMENSIONS : Outside diameter = 3.00 inch , Type = B , Bore min = 1 inch , Bore max = 1 1/4 inch ,H = 1 13/16 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B12
Model description
No.Teeth = 12
DIMENSIONS : Outside diameter = 3.25 inch , Type = B , Bore min = 1 inch , Bore max = 1 7/16 inch ,H = 2 1/8 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B13
Model description
No.Teeth = 13
DIMENSIONS : Outside diameter = 3.49 inch , Type = B , Bore min = 1 inch , Bore max = 1 1/2 inch ,H = 2 1/4 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 3.74 inch , Type = B , Bore min = 1 inch , Bore max = 1 3/4 inch ,H = 2 1/2 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 3.98 inch , Type = B , Bore min = 1 inch , Bore max = 1 7/8 inch ,H =2 13/16 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 4.22 inch , Type = B , Bore min = 1 inch , Bore max = 2 inch ,H = 3 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 4.46 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/4 inch ,H = 3 1/4 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B18
Model description
No.Teeth =18
DIMENSIONS : Outside diameter = 4.70 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/8 inch ,H = 3 1/2 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 4.95 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 11/16 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 5.19 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 3/4 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 5.43 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/8 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 5.67 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/8 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 5.91 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/8 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 6.15 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/8 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 6.39 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/8 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B26
Model description
No.Teeth = 26
DIMENSIONS : Outside diameter = 6.63 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/8 in. , L =2 1/8 in.
Price
Model
PHS 60 - 2B30
Model description
No.Teeth = 30
DIMENSIONS : Outside diameter = 7.59 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/4 inch ,H = 4 1/8 in. , L = 2 1/8 in.
Price
Model
PHS 60 - 2B32
Model description
No.Teeth = 32
DIMENSIONS : Outside diameter = 8.07 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,H = 4 1/2 in. , L = 2 3/8 in.
Price
Model
PHS 60 - 2B35
Model description
No.Teeth = 35
DIMENSIONS : Outside diameter = 8.78 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,H = 4 1/2 in. , L = 2 3/8 in.
Price
Model
PHS 60 - 2B36
Model description
No.Teeth = 36
DIMENSIONS : Outside diameter = 9.02 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 inch ,H =4 1/2 in. , L = 2 3/8 in.
Price
Model
PHS 60 - 2B40
Model description
No.Teeth = 40
DIMENSIONS : Outside diameter = 9.98 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 1/4 inch ,H = 4 3/4 in. , L = 2 3/4 in.
Price
Model
PHS 60 - 2B42
Model description
No.Teeth = 42
DIMENSIONS : Outside diameter = 10.46 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 1/4 inch ,H = 4 3/4 in. , L =2 3/4 in.
Price
Model
PHS 60 - 2B45
Model description
No.Teeth = 45
DIMENSIONS : Outside diameter = 11.18 inch , Type = B , Bore min =1 1/4 inch , Bore max = 3 1/4 inch ,H = 4 3/4 in. , L = 2 3/4 in.
Price
Model
PHS 60 - 2B52
Model description
No.Teeth = 52
DIMENSIONS : Outside diameter = 12.85 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 1/4 inch ,H = 4 3/4 in. , L =2 3/4 in.
Price
Model
PHS 60 - 2B60
Model description
No.Teeth = 60
DIMENSIONS : Outside diameter = 14.76 inch , Type = B , Bore min = 1 1/4 inch , Bore max = 3 1/4 inch ,H = 4 3/4 in. , L =2 3/4 in.
Price
