PRODUCT
![]()
ชื่อรุ่น :
PHS 50 - 2BXX
แบรนด์
SKF
รายละเอียด :

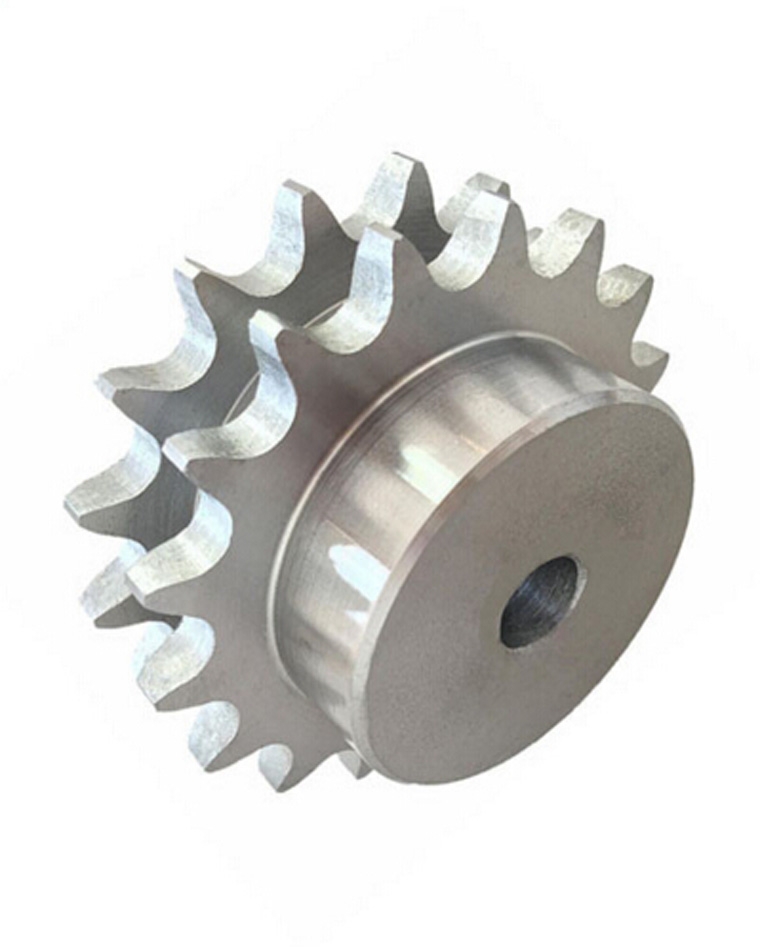

เฟื่องโซ่สองชั้น Pitch = 5/8"
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 50 - 2B11
Model description
No.Teeth = 11

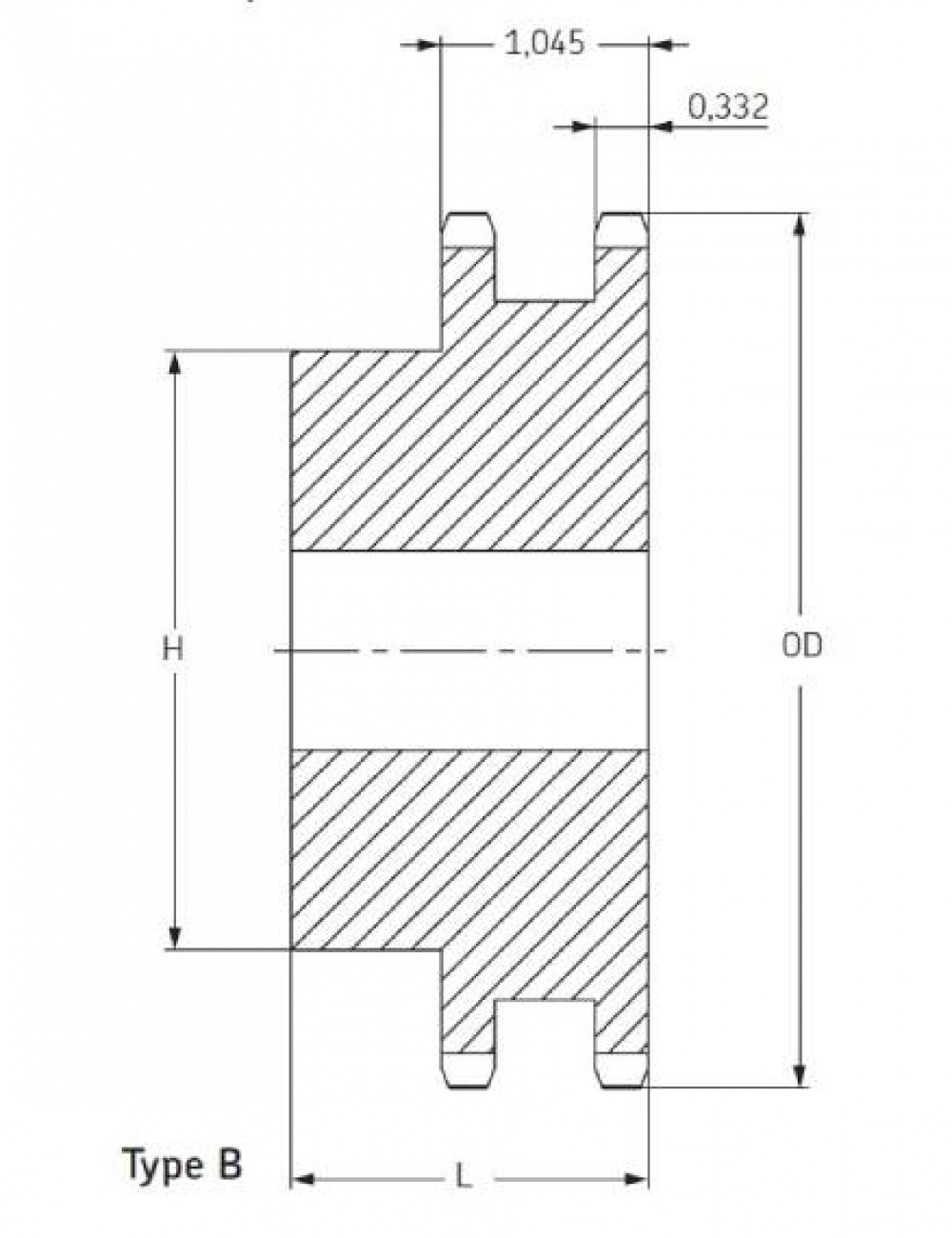

DIMENSIONS : Outside diameter = 2.50 inch , Type = B , Bore min = 5/8 inch , Bore max =15/16 inch ,H = 1 15/12 in. , L = 1 3/4 in.
Price
Model
PHS 50 - 2B12
Model description
No.Teeth = 12
DIMENSIONS : Outside diameter = 2.71 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 1/8 inch ,H = 1 11/16 in. , L = 1 3/4 in.
Price
Model
PHS 50 - 2B13
Model description
No.Teeth = 13
DIMENSIONS : Outside diameter = 2.91 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 5/16 inch ,H = 1 7/8 in. , L = 1 3/4 in.
Price
Model
PHS 50 - 2B14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 3.11 inch , Type = B , Bore min = 5/8 inch , Bore max = 1 3/8 inch ,H = 2 1/16 in. , L = 1 3/4 in.
Price
Model
PHS 50 - 2B15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 3.32 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 1/2 inch ,H = 2 5/16 in. , L = 1 3/4 in.
Price
Model
PHS 50 - 2B16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 3.52 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 3/4 inch ,H = 2 1/2 in. , L = 1 3/4 in.
Price
Model
PHS 50 - 2B17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 3.72 inch , Type = B , Bore min = 3/4 inch , Bore max = 1 7/8 inch ,H = 2 11/16 in. , L = 1 3/4 in.
Price
Model
PHS 50 - 2B18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 3.92 inch , Type = B , Bore min = 3/5 inch , Bore max = 1 15/16 inch ,H = 2 15/16 in. , L =1 3/4 in.
Price
Model
PHS 50 - 2B19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 4.12 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/8 inch ,H = 3 1/8 in. , L = 1 3/4 in.
Price
Model
PHS 50 - 2B20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 4.32 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/4 inch ,H = 3 1/4 in. , L = 1 3/4 in.
Price
Model
PHS 50 - 2B21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 4.52 inch , Type = B , Bore min = 1 inch , Bore max = 2/8 inch ,H = 3 1/2 in. , L = 1 3/4 in.
Price
Model
PHS 50 - 2B22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 4.72 inch , Type = B , Bore min = 1 inch , Bore max = 2 3/8 inch ,H = 3 9/16 in. , L = 1 7/8 in.
Price
Model
PHS 50 - 2B23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 4.92 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 5/8 in. , L = 1 7/8 in.
Price
Model
PHS 50 - 2B24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 5.12 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 5/8 in. , L = 1 7/8 in.
Price
Model
PHS 50 - 2B25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 5.32 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 5/8 in. , L = 1 7/8 in.
Price
Model
PHS 50 - 2B26
Model description
No.Teeth = 26
DIMENSIONS : Outside diameter = 5.52 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 5/8 in. , L =1 7/8 in.
Price
Model
PHS 50 - 2B30
Model description
No.Teeth = 30
DIMENSIONS : Outside diameter = 6.32 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 5/8 in. , L = 1 7/8 in.
Price
Model
PHS 50 - 2B32
Model description
No.Teeth = 32
DIMENSIONS : Outside diameter = 6.72 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H = 3 5/8 in. , L = 1 7/8 in.
Price
Model
PHS 50 - 2B35
Model description
No.Teeth = 35
DIMENSIONS : Outside diameter = 7.32 inch , Type = B , Bore min = 1 inch , Bore max = 2 1/2 inch ,H =3 5/8 in. , L = 1 7/8 in.
Price
Model
PHS 50 - 2B40
Model description
No.Teeth = 40
DIMENSIONS : Outside diameter = 7.52 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 in. , L = 2 1/8 in.
Price
Model
PHS 50 - 2B42
Model description
No.Teeth = 42
DIMENSIONS : Outside diameter =8.72 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 in. , L = 2 1/8 in.
Price
Model
PHS 50 - 2B45
Model description
No.Teeth = 45
DIMENSIONS : Outside diameter = 9.31 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 in. , L = 2 1/8 in.
Price
Model
PHS 50 - 2B48
Model description
No.Teeth = 48
DIMENSIONS : Outside diameter = 9.91 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 1/4 in. , L 2 3/8 in.
Price
Model
PHS 50 - 2B52
Model description
No.Teeth = 52
DIMENSIONS : Outside diameter = 10.71 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 1/4 in. , L = 2 3/8 in.
Price
Model
PHS 50 - 2B54
Model description
No.Teeth = 54
DIMENSIONS : Outside diameter = 11.11 inch , Type = B , Bore min = 1 3/16 inch , Bore max = 2 3/4 inch ,H = 4 1/4 in. , L =2 3/8 in.
Price
Model
PHS 50 - 2B60
Model description
No.Teeth = 60
DIMENSIONS : Outside diameter = 12.30 inch , Type = B , Bore min = 1 5/16 inch , Bore max = 3 inch ,H = 4 1/2 in. , L = 2 3/8 in.
Price
Model
PHS 50 - 2B68
Model description
No.Teeth = 68
DIMENSIONS : Outside diameter = 13.89 inch , Type = B , Bore min = 1 5/16 inch , Bore max = 3 inch ,H = 4 1/2 in. , L = 2 3/8 in.
Price
Model
PHS 50 - 2B72
Model description
No.Teeth = 72
DIMENSIONS : Outside diameter = 14.69 inch , Type = B , Bore min = 1 5/16 inch , Bore max = 3 inch ,H = 4 1/2 in. , L = 2 3/8 in.
Price
Model
PHS 50 - 2B76
Model description
No.Teeth = 76
DIMENSIONS : Outside diameter = 15.49 inch , Type = B , Bore min = 1 5/16 inch , Bore max = 3 inch ,H = 4 1/2 in. , L = 2 3/8 in.
Price
Model
PHS 50 - 2B84
Model description
No.Teeth = 84
DIMENSIONS : Outside diameter = 17.08 inch , Type = B , Bore min = 1 5/16 inch , Bore max = 3 inch ,H = 4 1/2 in. , L = 2 3/8 in.
Price
Model
PHS 50 - 2B95
Model description
No.Teeth = 95
DIMENSIONS : Outside diameter = 19.27 inch , Type = B , Bore min = 1 5/16 inch , Bore max = 3 inch ,H = 3 1/2 in. , L = 2 3/8 in.
Price
Model
PHS 50 - 2B96
Model description
No.Teeth = 96
DIMENSIONS : Outside diameter = 19.47 inch , Type = B , Bore min = 1 5/16 inch , Bore max = 3 inch ,H = 3 1/2 in. , L = 2 3/8 in.
Price
Model
PHS 50 - 2B102
Model description
No.Teeth = 102
DIMENSIONS : Outside diameter = 20.66 inch , Type = B , Bore min = 1 5/16 inch , Bore max = 3 inch ,H = 3 1/2 in. , L =2 3/8 in.
Price
Model
PHS 50 - 2B112
Model description
No.Teeth = 112
DIMENSIONS : Outside diameter = 22.65 inch , Type = B , Bore min = 1 5/16 inch , Bore max = 3 5/16 inch ,H = 5 1/4 in. , L = 2 3/8 in.
Price
