PRODUCT
![]()
ชื่อรุ่น :
PHS 200 - 2BXX
แบรนด์
SKF
รายละเอียด :

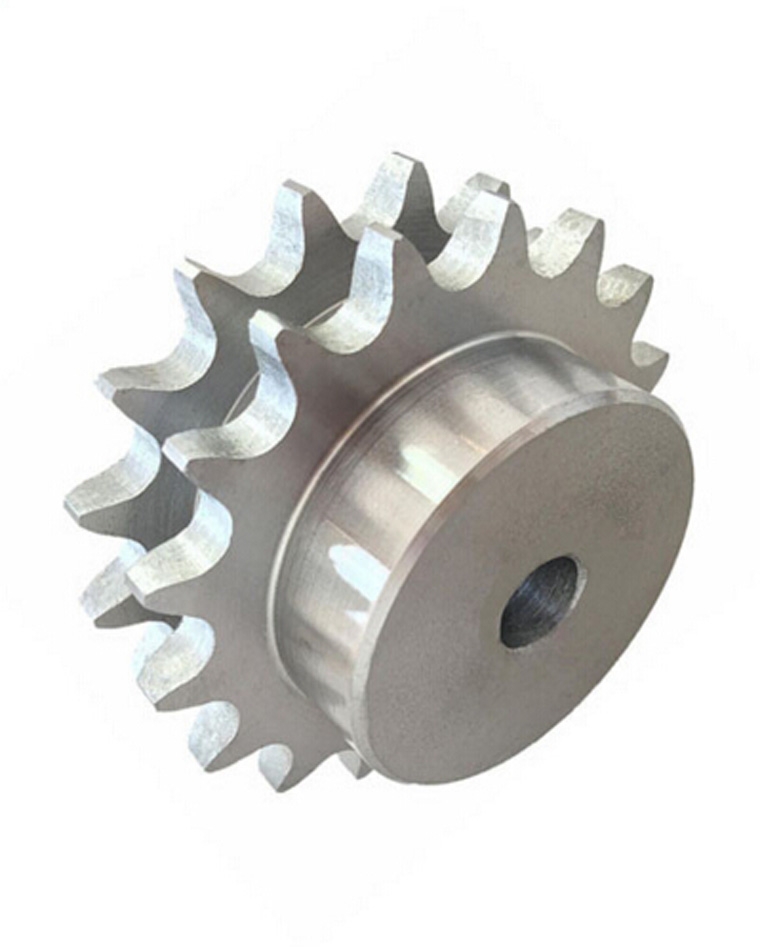

เฟื่องโซ่สองชั้น Pitch = 2.1/2"
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 200 - 2B11
Model description
No.Teeth = 11

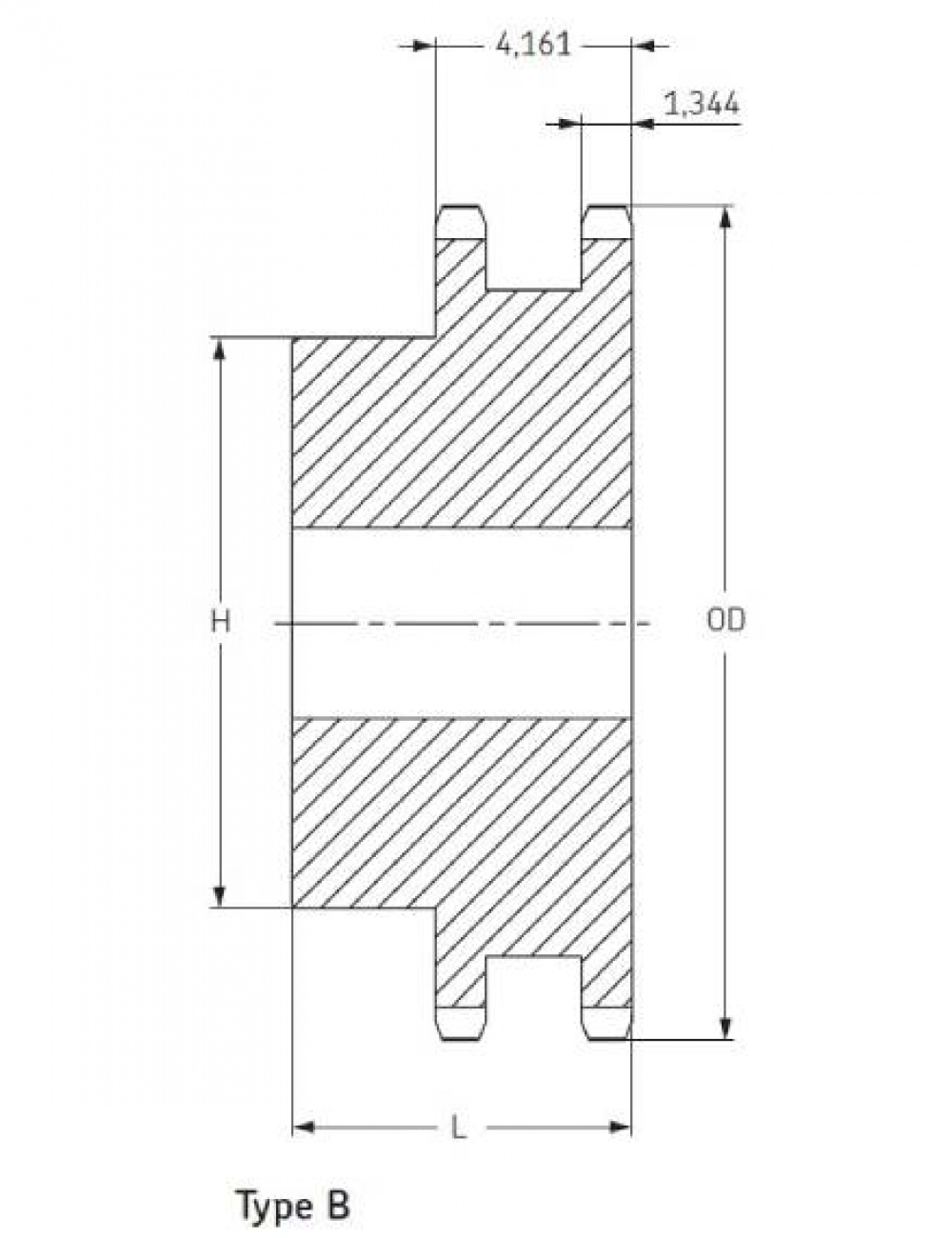

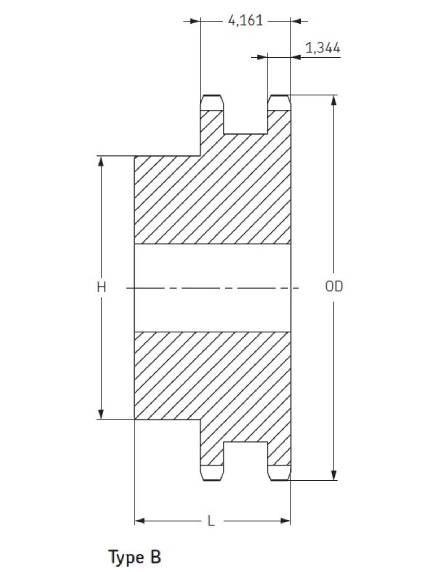

DIMENSIONS : Outside diameter = 10.02 inch , Type = B , Bore min = 2 inch , Bore max = 3 3/4 inch ,H = 5 1/2 in. , L = 5 7/8 in.
Price
Model
PHS 200 - 2B12
Model description
No.Teeth = 12
DIMENSIONS : Outside diameter = 10.83 inch , Type = B , Bore min = 2 inch , Bore max = 4 1/2 inch ,H = 6 1/2 in. , L = 6 1/4 in.
Price
Model
PHS 200 - 2B13
Model description
No.Teeth = 13
DIMENSIONS : Outside diameter = 11.64 inch , Type = B , Bore min = 2 inch , Bore max = 5 1/4 inch ,H = 7 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 12.46 inch , Type = B , Bore min = 2 inch , Bore max = 5 1/2 inch ,H = 8 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 13.26 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/4 inch ,H = 8 1/2 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 14.07 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/4 inch ,H = 8 1/2 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 14.87 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/4 inch ,H = 8 1/2 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 15.68 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/4 inch ,H =8 1/2 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 16.48 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/4 inch ,H = 8 1/2 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 17.29 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/4 inch ,H = 8 1/2 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 18.09 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/4 inch ,H = 8 1/2 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 18.89 inch , Type = B , Bore min = 2 inch , Bore max =5 3/4 inch ,H = 8 1/2 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 19.69 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/4 inch ,H = 8 1/2 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 20.49 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/4 inch ,H = 8 1/2 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 21.29 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/4 inch ,H = 8 1/2 in. , L = 6 3/8 in.
Price
Model
PHS 200 - 2B26
Model description
No.Teeth = 26
DIMENSIONS : Outside diameter = 22.09 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/4 inch ,H = 8 1/2 in. , L = 6 5/8 in.
Price
