PRODUCT
![]()
ชื่อรุ่น :
PHS 160 - 2BXX
แบรนด์
SKF
รายละเอียด :

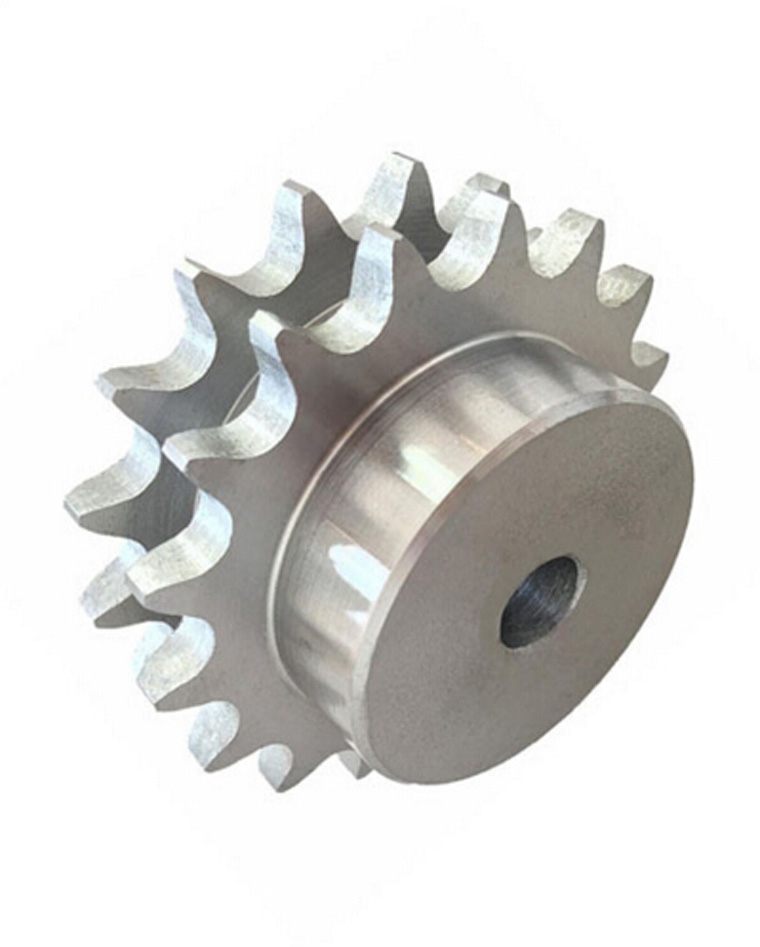

เฟื่องโซ่สองชั้น Pitch = 2"
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 160 - 2B13
Model description
No.Teeth = 13

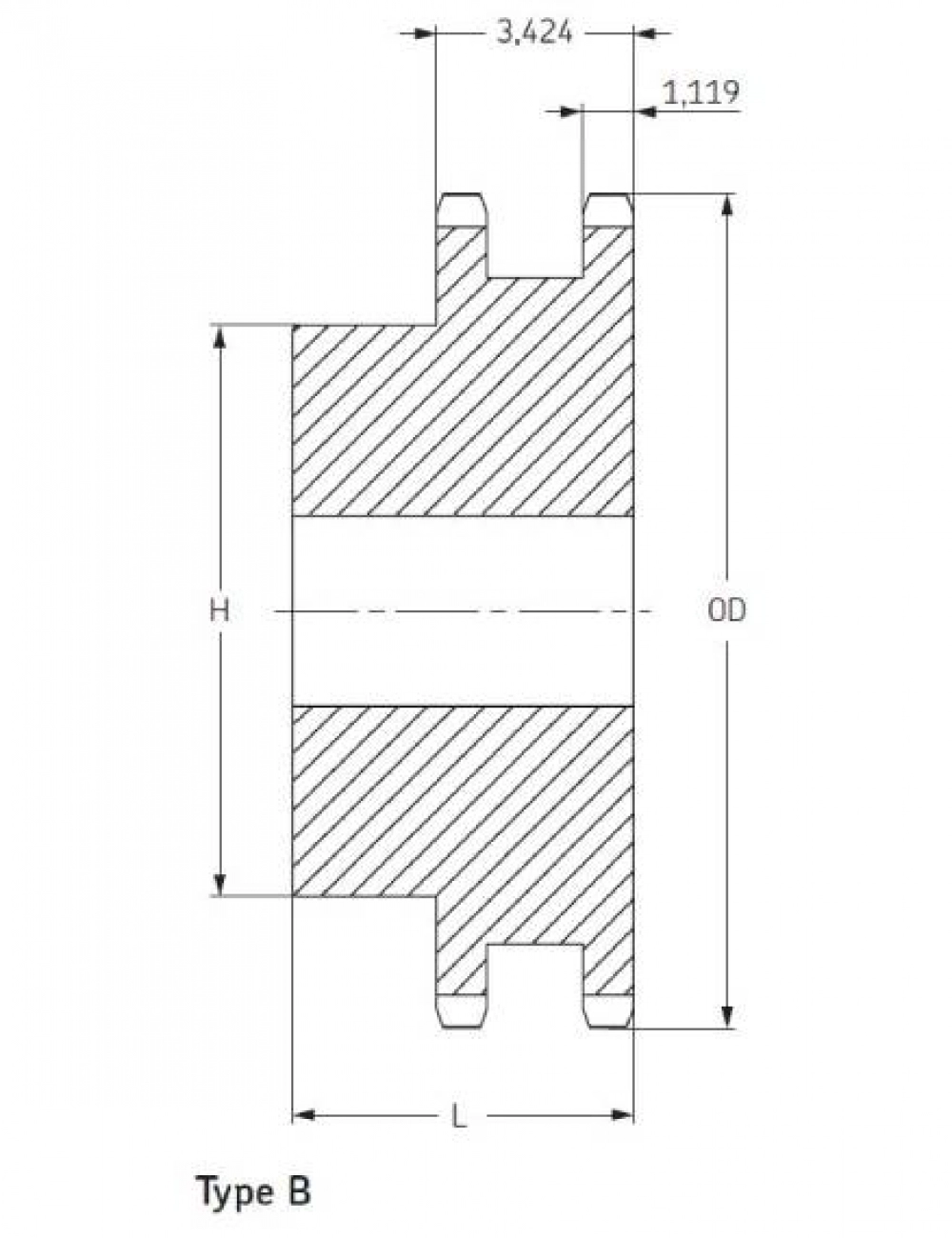

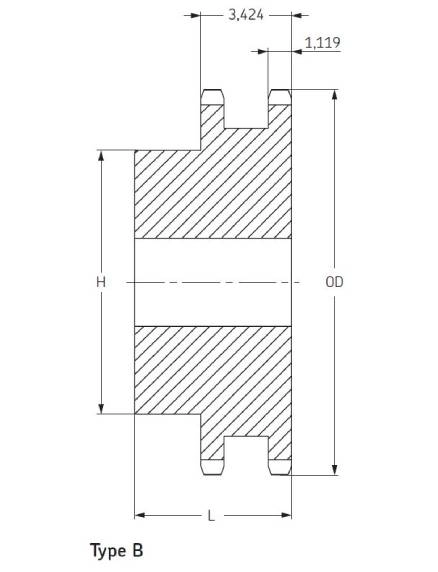

DIMENSIONS : Outside diameter = 9.31 inch , Type = B , Bore min = 2 inch , Bore max = 4 inch ,H = 6 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 9.96 inch , Type = B , Bore min = 2 inch , Bore max = 4 3/4 inch ,H = 6 3/4 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 10.61 inch , Type = B , Bore min = 2 inch , Bore max = 5 1/4 inch ,H = 7 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 11.26 inch , Type = B , Bore min = 2 inch , Bore max = 5 1/4 inch ,H = 7 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 11.90 inch , Type = B , Bore min = 2 inch , Bore max = 5 1/4 inch ,H = 7 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 12.54 inch , Type = B , Bore min = 2 inch , Bore max = 5 1/4 inch ,H = 7 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 13.19 inch , Type = B , Bore min = 2 inch , Bore max = 5 1/4 inch ,H = 7 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 13.83 inch , Type = B , Bore min = 2 inch , Bore max = 5 1/4 inch ,H = 7 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 14.47 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/8 inch ,H = 7 1/2 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 15.11 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/8 inch ,H = 7 1/2 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 15.75 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/8 inch ,H =7 1/2 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 16.39 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/8 inch ,H =7 1/2 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 17.03 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/8 inch ,H = 7 1/2 in. , L = 4 3/4 in.
Price
Model
PHS 160 - 2B26
Model description
No.Teeth = 26
DIMENSIONS : Outside diameter = 17.67 inch , Type = B , Bore min = 2 inch , Bore max = 5 3/8 inch ,H = 7 1/2 in. , L = 4 3/4 in.
Price
