PRODUCT
![]()
ชื่อรุ่น :
PHS 140 - 2CXX
แบรนด์
SKF
รายละเอียด :
เฟื่องโซ่สองชั้น Pitch = 1.3/4" มีดุมยื่น 2 ข้าง
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 140 - 2B13
Model description
No.Teeth = 13
DIMENSIONS : Outside diameter = 8.15 inch , Type = B , Bore min = 1 5/8 inch , Bore max = 3 5/16 inch ,H = 5 in. , L = 3 3/4 in.
Price
Model
PHS 140 - 2B14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 8.72 inch , Type = B , Bore min = 1 5/8 inch , Bore max = 3 3/4 inch ,H = 5 1/2 in. , L = 3 3/4 in.
Price
Model
PHS 140 - 2B15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter =9.28 inch , Type = B , Bore min = 1 5/8 inch , Bore max = 4 1/2 inch ,H = 6 1/2 in. , L = 3 3/4 in.
Price
Model
PHS 140 - 2B16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 9.85 inch , Type = B , Bore min = 1 5/8 inch , Bore max = 5 1/4 inch ,H = 7 in. , L = 4 in.
Price
Model
PHS 140 - 2B17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 10.41 inch , Type = B , Bore min = 1 5/8 inch , Bore max = 5 1/4 inch ,H = 7 in. , L =4 in.
Price
Model
PHS 140 - 2B18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 10.98 inch , Type = B , Bore min = 1 3/4 inch , Bore max = 5 1/4 inch ,H =7 in. , L = 4 in.
Price
Model
PHS 140 - 2B19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 11.54 inch , Type = B , Bore min = 1 3/4 inch , Bore max = 5 1/4 inch ,H = 7 in. , L = 4 in.
Price
Model
PHS 140 - 2B20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 12.10 inch , Type = B , Bore min = 1 3/4 inch , Bore max = 5 1/4 inch ,H = 7 in. , L = 4 in.
Price
Model
PHS 140 - 2B21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 12.66 inch , Type = B , Bore min = 1 3/4 inch , Bore max =5 1/4 inch ,H = 7 in. , L = 4 in.
Price
Model
PHS 140 - 2B22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 13.22 inch , Type = B , Bore min = 1 3/4 inch , Bore max = 5 1/4 inch ,H = 7 in. , L =4 in.
Price
Model
PHS 140 - 2B23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 13.78 inch , Type = B , Bore min = 1 3/4 inch , Bore max = 5 1/4 inch ,H = 7 in. , L = 4 in.
Price
Model
PHS 140 - 2B24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 14.34 inch , Type = B , Bore min = 1 3/4 inch , Bore max = 5 1/4 inch ,H =7 in. , L = 4 in.
Price
Model
PHS 140 - 2B25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 14.90 inch , Type = B , Bore min = 1 3/4 inch , Bore max = 5 1/4 inch ,H = 7 in. , L = 4 in.
Price
Model
PHS 140 - 2B26
Model description
No.Teeth = 26
DIMENSIONS : Outside diameter = 15.46 inch , Type = B , Bore min = 1 3/4 inch , Bore max = 5 1/4 inch ,H = 7 in. , L =4 in.
Price
Model

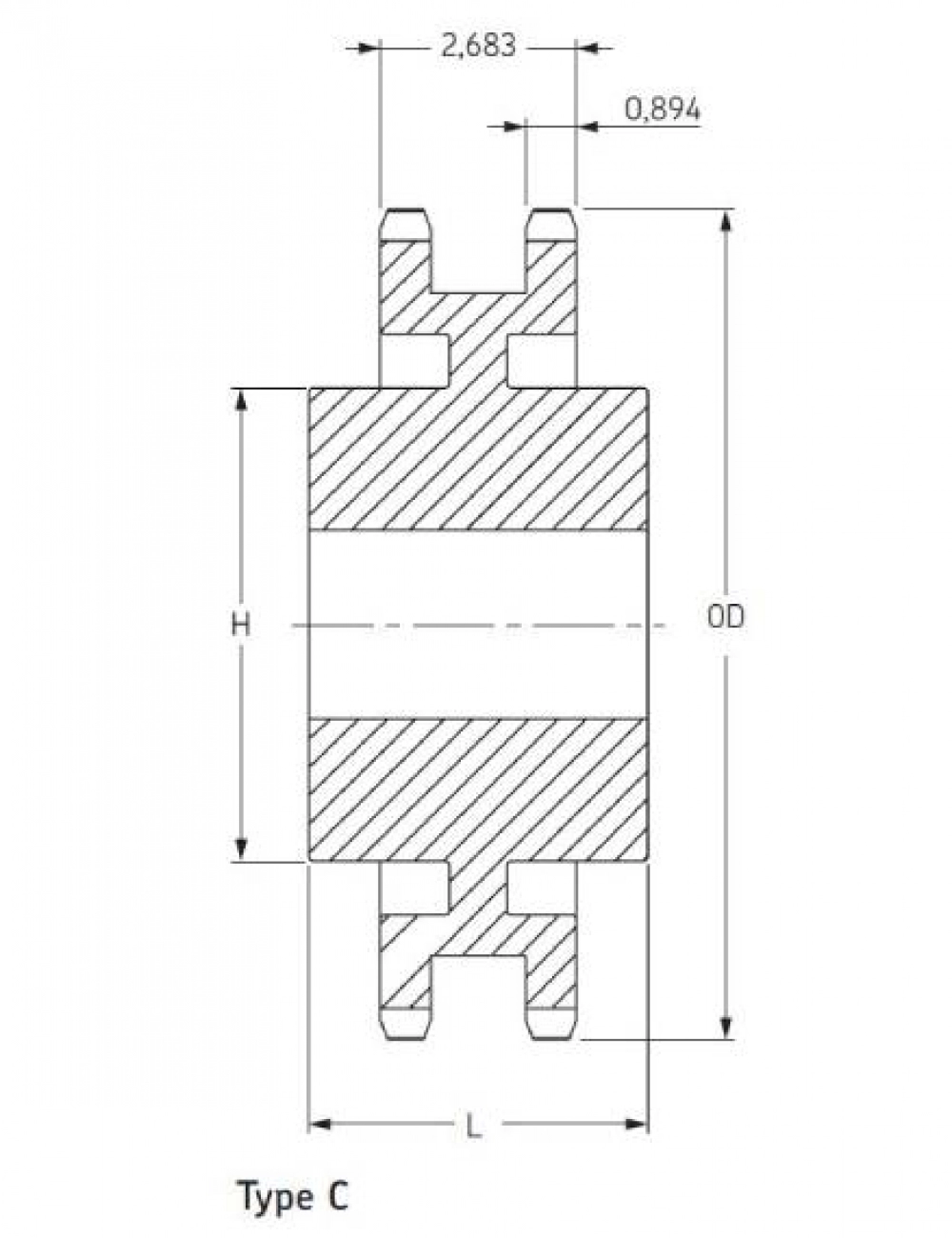

PHS 140 - 2C35
Model description
No.Teeth = 35
DIMENSIONS : Outside diameter = 30.49 inch , Type = C , Bore min = 1 1/2 inch , Bore max = 5 3/8 inch ,H = 7 1/2 in. , L = 6 in.
Price
Model
PHS 140 - 2C45
Model description
No.Teeth = 45
DIMENSIONS : Outside diameter = 26.08 inch , Type = C , Bore min = 1 1/2 inch , Bore max = 5 3/8 inch ,H = 7 1/2 in. , L = 6 in.
Price
Model
PHS 140 - 2C60
Model description
No.Teeth = 60
DIMENSIONS : Outside diameter = 34.44 inch , Type = C , Bore min = 1 1/2 inch , Bore max = 6 3/8 inch ,H = 9 1/2 in. , L = 6 1/4 in.
Price
