ชื่อรุ่น :

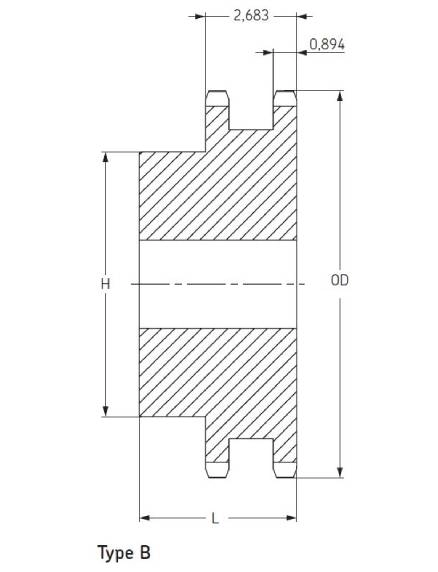

PHS 120 - 2BXX
แบรนด์
SKF
รายละเอียด :

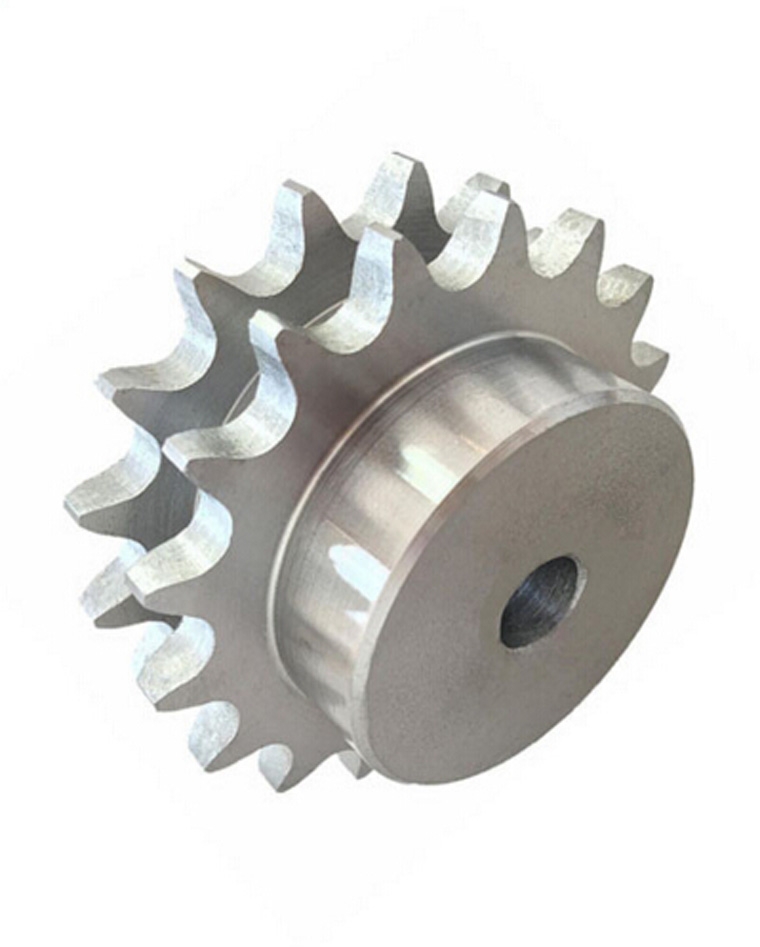

เฟื่องโซ่สองชั้น Pitch = 1.1/2"
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHS 120 - 2B11
Model description
No.Teeth = 11

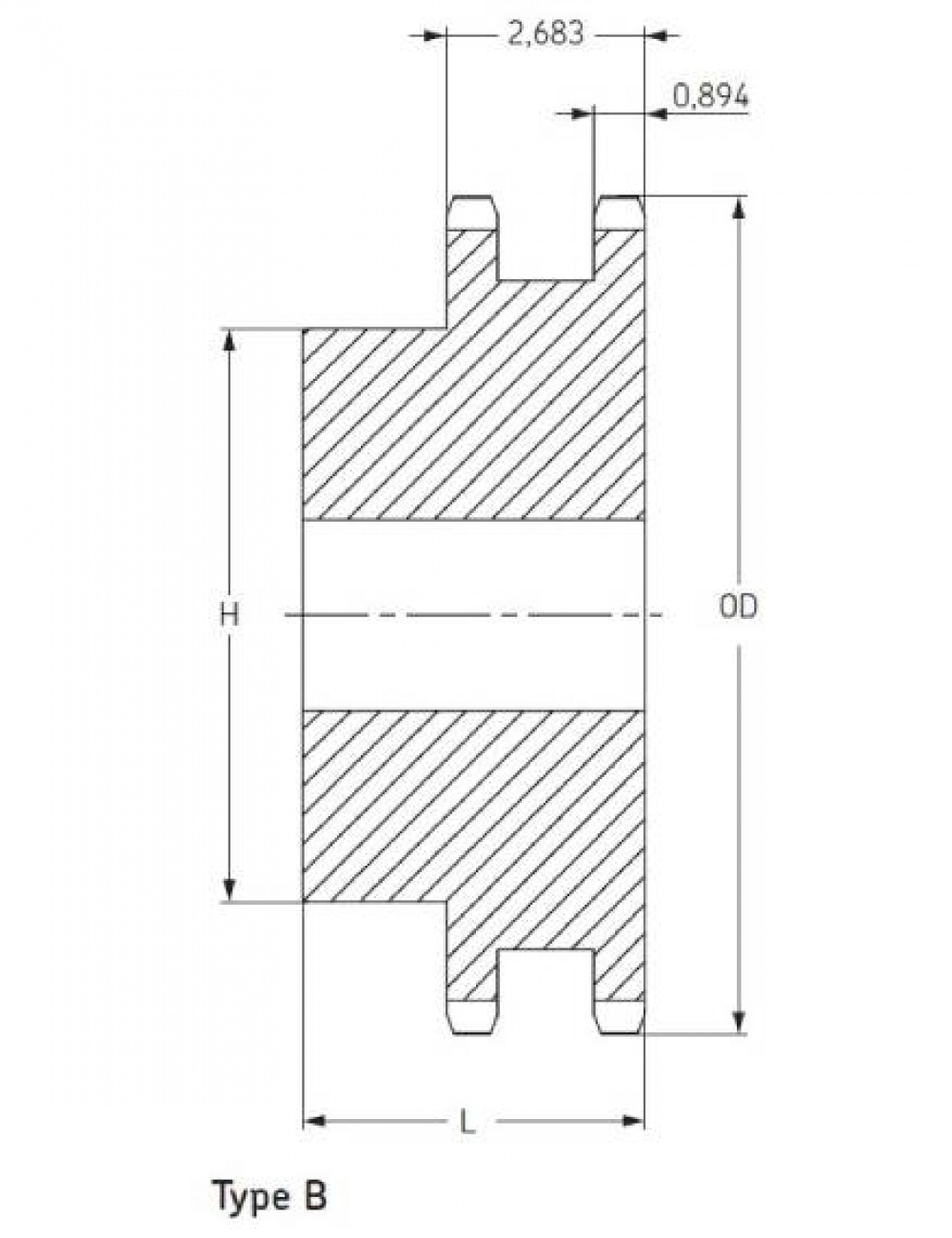

DIMENSIONS : Outside diameter = 6.01 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 2 3/8 inch ,H = 3 9/16 in. , L =3 3/4 in
Price
Model
PHS 120 - 2B12
Model description
No.Teeth = 12
DIMENSIONS : Outside diameter = 6.50 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 2 3/4 inch ,H = 4 1/16 in. , L = 3 3/4 in
Price
Model
PHS 120 - 2B13
Model description
No.Teeth = 13
DIMENSIONS : Outside diameter = 6.99 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 inch ,H = 4 1/2 in. , L = 3 3/4 in
Price
Model
PHS 120 - 2B14
Model description
No.Teeth = 14
DIMENSIONS : Outside diameter = 7.47 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 5/16 inch ,H = 5 in. , L = 3 3/4 in
Price
Model
PHS 120 - 2B15
Model description
No.Teeth = 15
DIMENSIONS : Outside diameter = 7.96 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,H = 5 1/4 in. , L = 3 3/4 in
Price
Model
PHS 120 - 2B16
Model description
No.Teeth = 16
DIMENSIONS : Outside diameter = 8.44 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,H = 5 1/4 in. , L = 3 3/4 in
Price
Model
PHS 120 - 2B17
Model description
No.Teeth = 17
DIMENSIONS : Outside diameter = 8.92 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,H = 5 1/4 in. , L = 3 3/4 in
Price
Model
PHS 120 - 2B18
Model description
No.Teeth = 18
DIMENSIONS : Outside diameter = 9.41 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,H = 5 1/4 in. , L = 3 3/4 in
Price
Model
PHS 120 - 2B19
Model description
No.Teeth = 19
DIMENSIONS : Outside diameter = 9.89 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,H = 5 1/4 in. , L =3 3/4 in
Price
Model
PHS 120 - 2B20
Model description
No.Teeth = 20
DIMENSIONS : Outside diameter = 10.37 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,H = 5 1/4 in. , L = 3 3/4 in
Price
Model
PHS 120 - 2B21
Model description
No.Teeth = 21
DIMENSIONS : Outside diameter = 10.85 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 1/2 inch ,H = 5 1/4 in. , L = 3 3/4 in
Price
Model
PHS 120 - 2B22
Model description
No.Teeth = 22
DIMENSIONS : Outside diameter = 11.33 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 3 13/16 inch ,H = 5 3/4 in. , L = 4 in
Price
Model
PHS 120 - 2B23
Model description
No.Teeth = 23
DIMENSIONS : Outside diameter = 11.81 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 4 1/2 inch ,H = 6 1/2 in. , L = 4 in
Price
Model
PHS 120 - 2B24
Model description
No.Teeth = 24
DIMENSIONS : Outside diameter = 12.29 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 4 1/2 inch ,H =6 1/2 in. , L = 4 in
Price
Model
PHS 120 - 2B25
Model description
No.Teeth = 25
DIMENSIONS : Outside diameter = 12.77 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 4 1/2 inch ,H = 6 1/2 in. , L = 4 in
Price
Model
PHS 120 - 2B26
Model description
No.Teeth = 26
DIMENSIONS : Outside diameter = 13.25 inch , Type = B , Bore min = 1 1/2 inch , Bore max = 4 1/2 inch ,H = 6 1/2 in. , L = 4 in
Price
