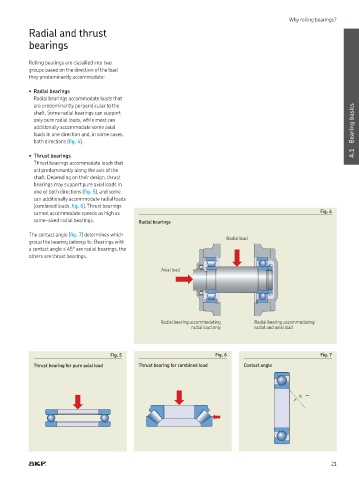

Why rolling bearings?
           Radial and thrust
           bearings


           Rolling bearings are classiied into two
           groups based on the direction of the load
           they predominantly accommodate:

           • Radial bearings
            Radial bearings accommodate loads that
            are predominantly perpendicular to the
            shaft. Some radial bearings can support
            only pure radial loads, while most can                                                                    Bearing basics
            additionally accommodate some axial
            loads in one direction and, in some cases,
            both directions (ig. 4).
                                                                                                                      A.1
           • Thrust bearings
            Thrust bearings accommodate loads that
            act predominantly along the axis of the
            shaft. Depending on their design, thrust
            bearings may support pure axial loads in
            one or both directions (ig. 5), and some
            can additionally accommodate radial loads
            (combined loads, ig. 6). Thrust bearings
            cannot accommodate speeds as high as                                                           Fig. 4
            same-sized radial bearings.        Radial bearings

           The contact angle (ig. 7) determines which
                                                                            Radial load
           group the bearing belongs to. Bearings with
           a contact angle ≤ 45° are radial bearings, the
           others are thrust bearings.

                                                      Axial load









                                                      Radial bearing accommodating   Radial bearing accommodating
                                                                radial load only     radial and axial load




                                      Fig. 5                            Fig. 6                             Fig. 7
            Thrust bearing for pure axial load  Thrust bearing for combined load  Contact angle




                                                                                                    α












                                                                                                               21
