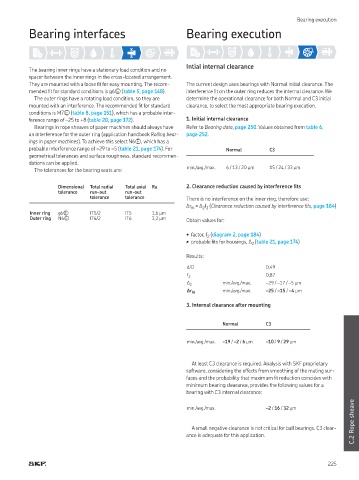

Bearing execution
           Bearing interfaces                                  Bearing execution





                                                               Intial internal clearance
           The bearing inner rings have a stationary load condition and no
           spacer between the inner rings in the cross-located arrangement
           They are mounted with a loose it for easy mounting. The recom-  The current design uses bearings with Normal initial clearance. The
           mended it for standard conditions is g6� (table 5, page 148).   interference it on the outer ring reduces the internal clearance. We
            The outer rings have a rotating load condition, so they are   determine the operational clearance for both Normal and C3 initial
           mounted with an interference. The recommended it for standard   clearance, to select the most appropriate bearing execution
           conditions is M7� (table 8, page 151), which has a prob able inter-
           ference range of –25 to +8 (table 20, page 172).    1. Initial internal clearance
            Bearings in rope sheaves of paper machines should always have   Refer to Bearing data, page 250  Values obtained from table 6,
           an interference for the outer ring (application handbook Rolling bear-  page 252
           ings in paper machines). To achieve this select N6�, which has a
           probable interference range of –29 to –5 (table 21, page 174). For   Normal    C3
           geometrical tolerances and surface roughness, standard recommen-
           dations can be applied.
            The tolerances for the bearing seats are:          min /avg /max   6 / 13 / 20 μm  15 / 24 / 33 μm

                    Dimensional  Total radial   Total axial  Ra   2. Clearance reduction caused by interference its
                    tolerance   run-out    run-out
                               tolerance   tolerance           There is no interference on the inner ring, therefore use:
                                                               Δr = Δ f  (Clearance reduction caused by interference its, page 184)
                                                                    2 2
                                                                it
           Inner ring  g6�     IT5/2      IT5      1,6 µm
           Outer ring  N6�     IT6/2      IT6      3,2 µm      Obtain values for:
                                                               • factor, f  (diagram 2, page 184)
                                                                      2
                                                               • probable its for housings, Δ  (table 21, page 174)
                                                                                    2
                                                               )
                                                               Results:
                                                               d/D                       0,49
                                                               f 2                       0,87
                                                               Δ 2         min /avg /max   –29 / –17 / –5 μm
                                                                           min /avg /max   –25 / –15 / –4 μm
                                                               Δr it
                                                               3. Internal clearance after mounting


                                                                           Normal        C3


                                                               min /avg /max   –19 / –2 / 6 μm  –10 / 9 / 29 μm



                                                                 At least C3 clearance is required  Analysis with SKF proprietary
                                                               software, considering the effects from smoothing of the mating sur-
                                                               faces and the probability that maximum it reduction coincides with
                                                               minimum bearing clearance, provides the following values for a
                                                               bearing with C3 internal clearance:
                                                                                                                      C.2 Rope sheave
                                                               min /avg /max             –2 / 16 / 32 μm


                                                                 A small negative clearance is not critical for ball bearings  C3 clear-
                                                               ance is adequate for this application
